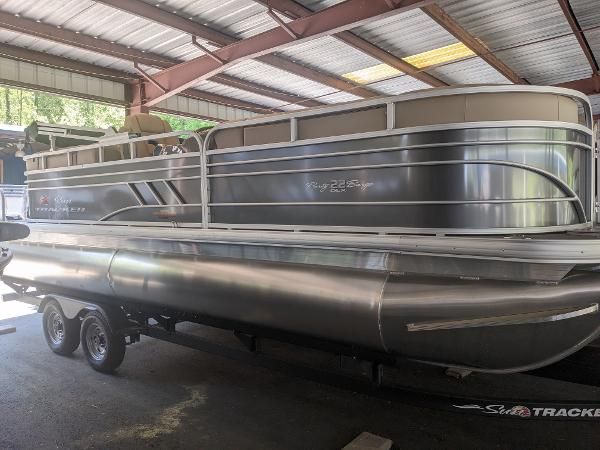

2023 Sun Tracker Party Barge 22 DLX

Additional Specs

• Length:24' 2"

• Deck Length: 22' 1"

• Deck Width: 8' 6"

• Max. Recommended HP: 150 HP

• Fuel Capacity: 32.1 gal.

• Pontoon Log Length: 22' 3"

• Pontoon Log Diameter: 24"

• Pontoon Log Material: 0.08 5052 marine alloy

• Max. Person Capacity: 11 persons

• Max. Person Weight: 1500 lbs.

• Max. Person, Motor & Gear Weight: 2200 lbs.

• Interior Depth: 29.5"

• Average Dry Weight: 2080 lbs.

• Average Package Weight: 3915 lbs.

• Package Height: 8' 10"

• Package Width: 8' 6"

• Towing Length: 32' 4"

• Storage Length: 32' 4"

Standard Features

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty

• NMMA® certified

• 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)

• Storage pockets in Bimini top

• Nylon gate latches & heavy-duty hinges that open inward

• Port & starboard LED navigation lights

• Bimini-mounted anchor/navigation light

• Mooring eye on starboard side for tie off

• Four 4.5" (11.43 cm) fold-down mooring cleats

• Motor-stop safety lanyard

• Fire extinguisher

• Horn

Console

• Deluxe soft-touch sport steering wheel

• 4:2 ratio no-feedback steering for responsive, easy turning

• Wraparound sport shroud & tinted, removable windscreen

• Below-console cooler/storage space w/door & integrated pouch

• Small items tray

• Drink holders

• Built-in footrest w/non-skid pad

• AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 2 NEW upholstery speakers

• USB/3.5 mm auxiliary input ports on console for direct stereo connection

• Tachometer, trim meter/speedometer & fuel & hour gauges

• Lighted rocker switches

• Ergonomically positioned Mercury® binnacle control box w/trim

• 12V outlet

• Dark console color

Interior

• The patented STOW MORE™ system features an added compartment in the seat back for increased storage

• Bow port couch w/STOW MORE™ system, underseat storage & armrest w/drink holder

• Bow starboard couch w/STOW MORE™ system & underseat storage

• High-back swiveling port bucket seat, reclining & w/self-leveling arms

• High-back swiveling helm bucket seat, reclining & w/self-leveling arms

• Aft port couch w/STOW MORE™ system, underseat storage & arm

• Aft starboard couch w/STOW MORE™ system, lockable underseat storage & arm

• Midship port side drink holder

• Full-width aft swim deck

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

• 2 movable drink holders/armrests

• Removable table w/padded insert, 4 molded-in drink holders & 2 pedestal base locations

Performance

• Nose cone & motor pod wave/spray deflectors for a drier ride

• Factory-matched aluminum propeller

Construction & Exterior

• Color: NEW Charcoal or NEW Copper Red fencing

• Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout

• Rotomolded couches & backs for furniture w/Diamante Pepper accent

• Heavy-duty bow U-channel reinforcement behind deck trim

• 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength

• 1-piece full-length M-bracket deck supports

• Protective exoskeleton rail & panel system for durability & a quieter ride

• High-sheen fence finish for long-lasting good looks

• 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling

• Reinforced bow structure

• Extruded anodized aluminum deck edging w/polished aft corner covers

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system

• Stainless or coated corrosion-resistant fasteners

• Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty

• Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets

• Elevated fence panels for deck drainage & ventilation

• Sound- & vibration-deadening fence insulation for a quiet ride

• Box-beam all-aluminum transom for strength & longevity

• Port wheelchair-access gate

• Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails

Electrical

• Interior courtesy lighting

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door

• Protective abrasion-resistant wire wrap

• Water-resistant connectors
